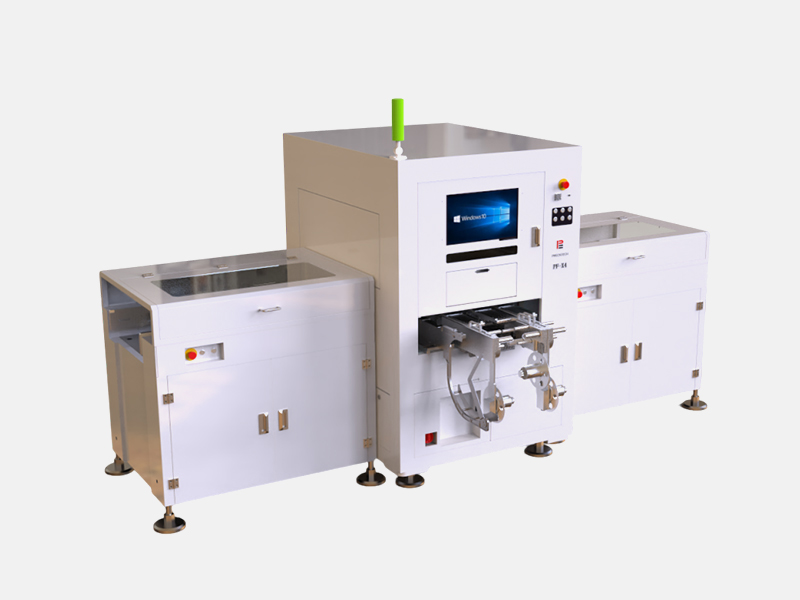

Recommended application scenarios: mainly used for FFC attaching, long-distance double-speed chain conveyor line, universally compatible with carriers up to 500mm wide

X-axis drive: linear motor

Y-axis drive: linear motor --- single drive

Z-axis: servo motor + timing belt, 4 Z-axes independently driven

U-axis: 4 U-axes

Applicable material length: 3×3～60×90 mm

Applicable carrier width: 2～8 mm

Applicable material thickness: 0.05～0.50 mm

Tape reel inner diameter: NA

Number of feeders: 1～4

Number of nozzles: 1～4

Placement speed: (with mark) 1.5 s/Pcs; (point-to-point) 1.8 s/Pcs

Repeat positioning accuracy: ±0.01 mm

Lamination repeat accuracy: with mark ±0.1 mm; point-to-point ±0.05 mm

Applicable lamination range: 100×100～350×420 mm

Placement method: separate picking, separate placement

Conveyor height: 910±30 mm

Machine dimensions: 4500×1400×1550 mm

Machine weight: 2300 kg

Machine power: 4 kW

Power supply voltage: 220 VAC

Compressed air: 0.5～0.8 Mpa

Operating environment: temperature 21±4℃, humidity 40~70%

Software programming method: DXF engineering file import

Vision camera: 1. Mark point scanning, point-to-point scanning (upper camera 5MP); 2. Intelligent material deviation correction (lower camera 5MP, fly-on-the-fly imaging)

Bad board selective placement function: 1. Upper camera recognition / bottom QR code recognition; 2. Direct Badmark point recognition by upper camera

MES database integration support: yes

Other functions: vacuum recognition anti-replacement, area algorithm and grayscale value detection anti-replacement
