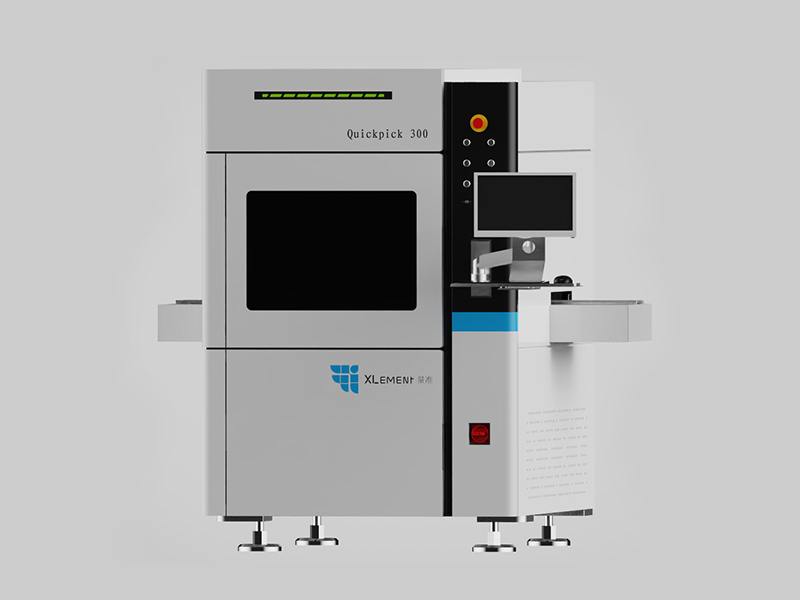

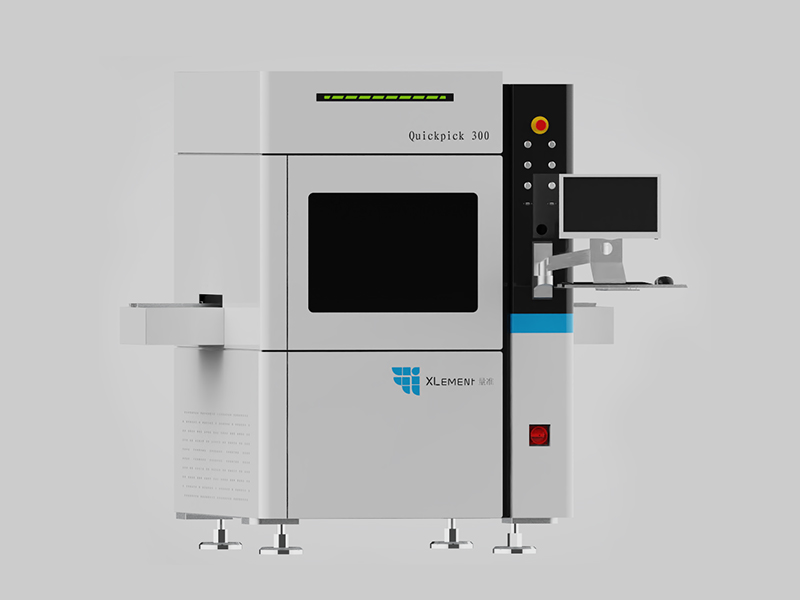

FP-QUICK PICK

Accurately achieves automated execution of key steps in the microbial culture process, including precise colony picking, sample loading/unloading, spread plating and inoculation, and colony rearrangement, realizing full-process automation.

Flexible and customizable modular workflow editing, colony picking and spreading functions can be used independently

Supports external device integration and other system integration (supports Modbus TCP, WebAPI, etc.)

Supports picking result interaction with third-party systems and data upload

Open colony characteristic customization function, equipped with intelligent software algorithms, supporting personalized colony recognition

Specifications

Colony picking source plate types: various circular petri dishes, 6/12/48-well square culture dishes

Colony picking destination plate types: 12, 24, 48, 96-well microplates or deep-well plates

Picking pins: 96 pins, each pin can operate independently

Colony picking speed: ≥50,000 colonies/day, ≥3,000 colonies/hour

Washing stations: 1 flow-through washing station, 2 fixed washing stations

Pin drying: professional heating drying module

Camera parameters: medical-grade AI camera, 50ms readout time

Instrument anti-contamination device: directional airflow + HEPA filter + UV

Operating environment: room temperature to 40℃, relative humidity 10%~90%

Dimensions: 1200×1400×1470mm (excluding loading/unloading shuttle)
